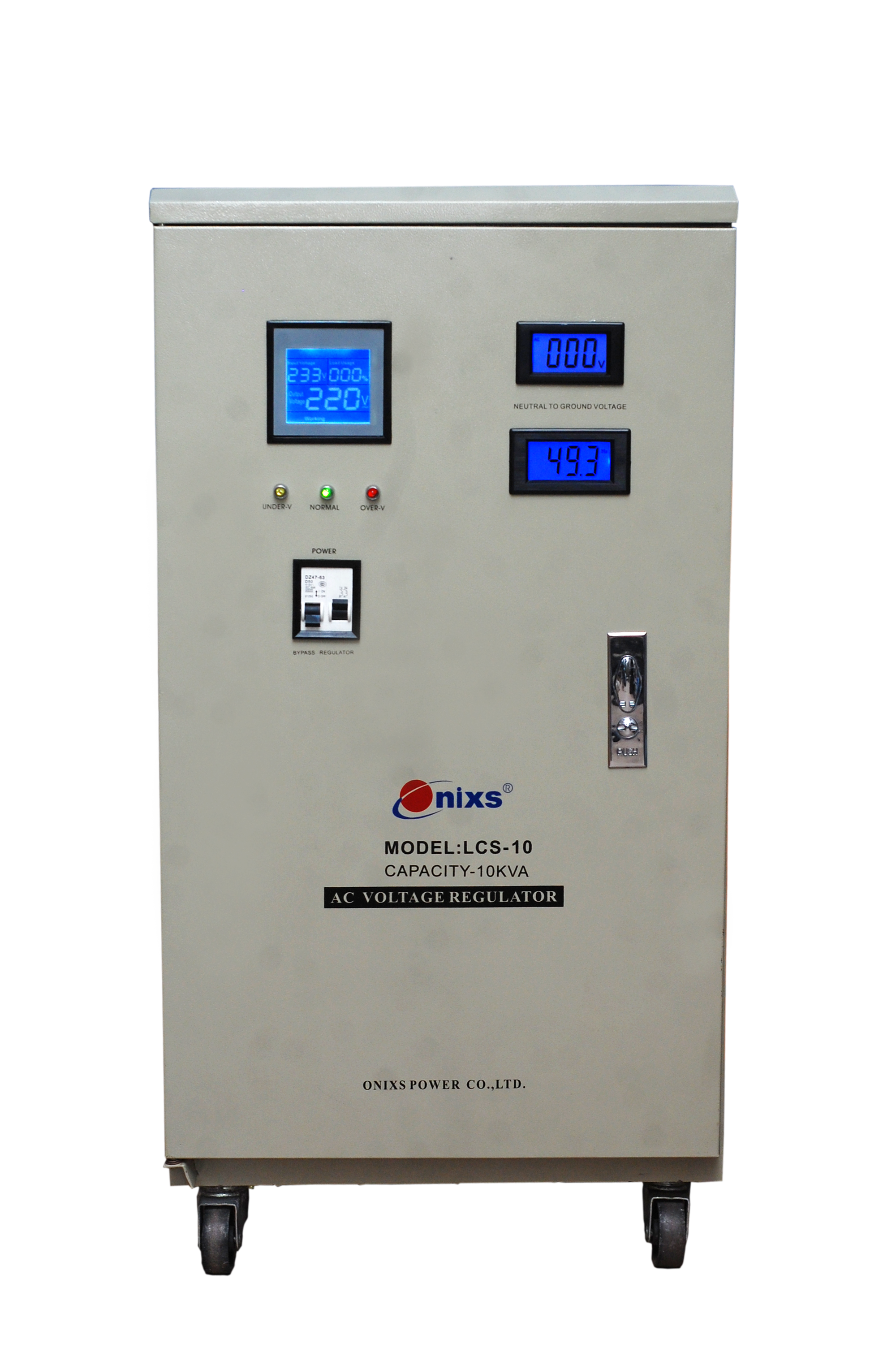

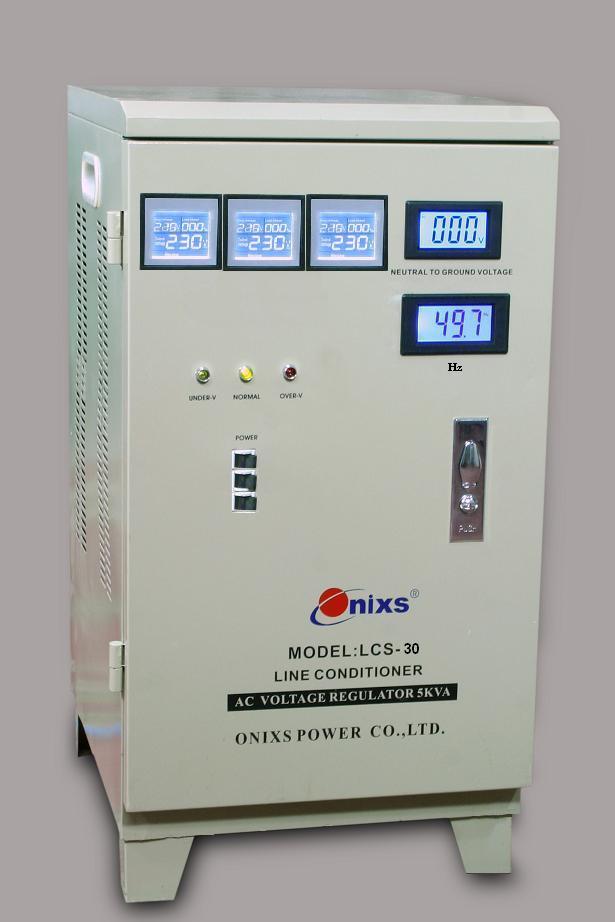

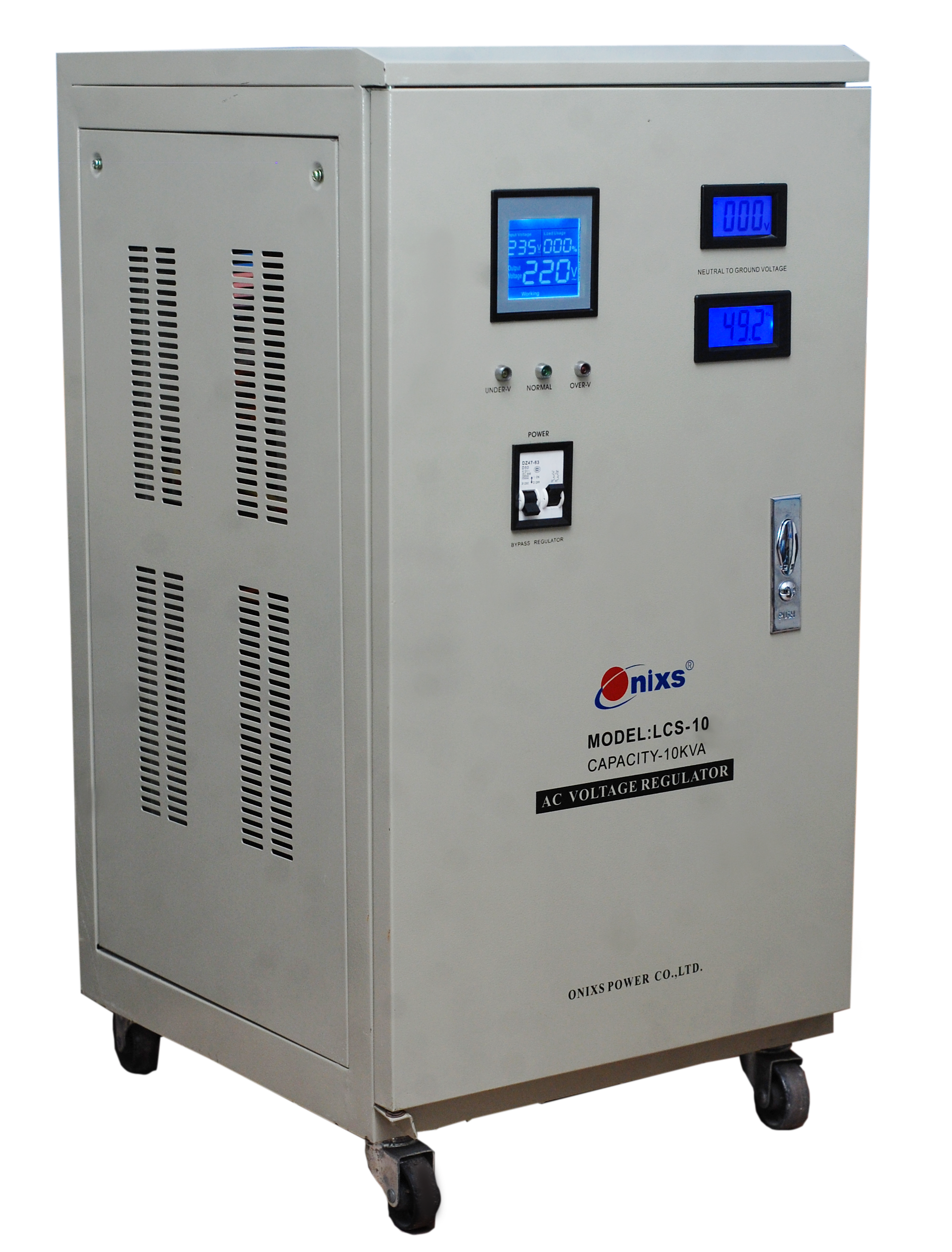

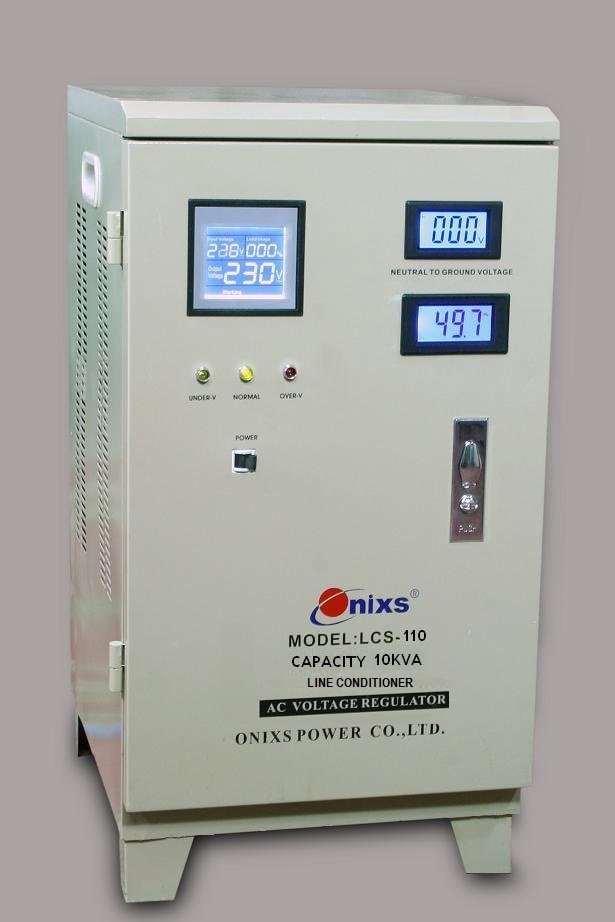

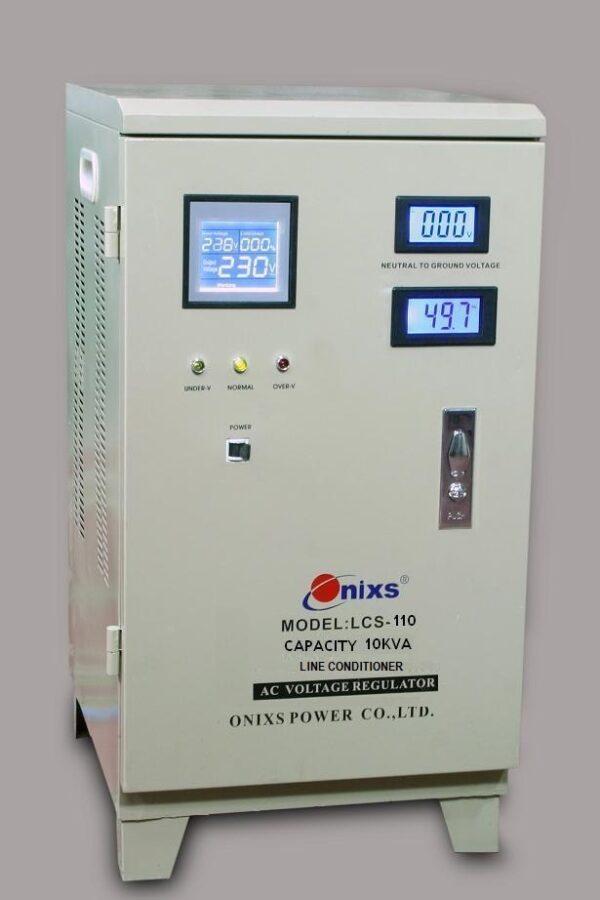

LCS Series 5KVA – 10KVA

LCS Series 5KVA – 10KVA

Specifications:
Input voltage:110V-270V
Output voltage: 220V per phase

Frequency:50HZ/60HZ

Time delay 5 Sec at output
Response time:<1S
High Efficiency
Ambient temperature:-10 centigrates ~+40 centigrates (+50centigrates as optional)
Low and High Voltages Protection
Short Circuits & Overload Protection
Relative humidity: <90%
Waveform distortion: Non-lack fidelity waveform
Insulation resistance: >5MΩ
Power factor: 0.8

Category:





Line Conditoner is a high technologic solution for operation of your sensitive devices with out any problem
wherever the main supply is not trusted. Produced of high quality materials, that can operate with high
efficiency under extreme & fast voltage changing conditions Thus, it has extremely high speed response.
Easy usage with its compact design, maintenance free and long life facilities.

Features:
Large LCD Display Professional Solution
Non-linear charges drive
1 phase input 1 phase output
Wide power and voltage interval
Boost & Buck AVR for stabilizing input Power Voltages
High reliability thanks to Microprocessor and Smart Driver
Built inThermal & Over Load protection
High Voltages output off
Built-in-Isolation Transformer
Ideal Neutral to Ground Output Voltages
Auto Self Restart When Ac Power input is Recover
Fast Regulation
High efficiency

APPLICATONS
􀂙 Computer and computer peripherals : Medical monitoring systems : Auto process control equipments : Industrial Robots
􀂙 Auto-testing equipments : Tele Communication system : Tv & Radio broadcasting stations : Laboratory Instruments
􀂙 Lighting equipments : Electronics & medical equipments : Photograpic processing equipmnets : Industries equipments
􀂙 Alarm and security system : Calculating machines : Numeric control machine tools : Hi-fi equipmnets
􀂙 Auto cashier machines : Automatic production line : Video and Audio : CNC equipments
􀂙 SMT equipments : OA equipmnets : ops terminals : Elevators
􀂙 Data Centers : CAD / CAM : Military research & defense weapons : Process control system
